SKU | 7457Y212161 |
Alternate Product Nos | 7457Y212161 |

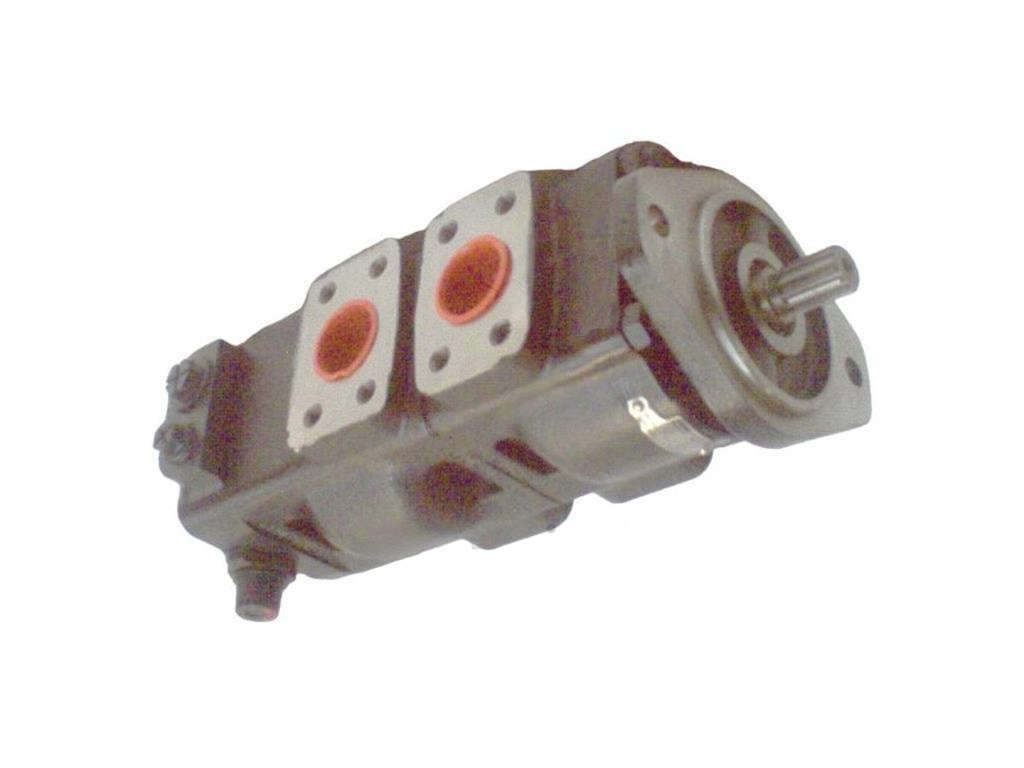

Product Name | Hydraulic Pump |
Manufacturer | Parker |
Product information :
| Pump type | gear pump |
| Number of pump elements | 2 |
| Type flange | Type A |
| Diameter of threaded mounting holes flange D1 (mm) | 14.1 |
| Center distance thread - mounting holes flange C1 (mm) | 146 |
| Total length of pump L1 (mm) | 428.6 |
| Neck diameter D2 (mm) | 101.6 |
| Axle type | Type D |
| Distance end - flange L2 (mm) | 41.2 |
| Axle diameter D3 (mm) | 21.6 |
| Number of channels | 13 |
| Direction of rotation | Counterclockwise |
| Suction position 1, for pump type T POS-CO1 only | Page |
| Connection type suction inlet 1, only for pump type T | Type C |
| Thread type Mounting holes | M12 |
| Center distance between threaded mounting holes C-CO1a (mm) | 35.7 |
| Center distance between threaded mounting holes C-CO2a (mm) | 70 |
| Position Pressure 1, for pump type T POS-CO2 only | Page |
| Connection type inlet pressure 1, solely for pump type T | Type C |
| Thread type Mounting holes | M10 |
| Center distance between threaded mounting holes C-CO1b (mm) | 26.6 |
| Center distance between threaded mounting holes C-CO2b (mm) | 52.6 |
| Intake position 2, alone For pump type T POS-CO3 | Page |
| Connection type: Inlet suction 2, solely for pump type T | Type C |
| Flow divider available | YES |
| Thread type, largest connection, flow divider TA3 | 3/4 BSP |
| Thread type of the second connection from the flow divider TA4 | 3/8 BSP |
| Material of the casing | metal |
SKU | 7457Y212161 |
Weight | 37.00 lb ( 16.78 kg ) |
Dimensions | 0.00 ( 0.00 ) x 0.00 (0.00) x 0.00 (0.00) inch (mm) |
